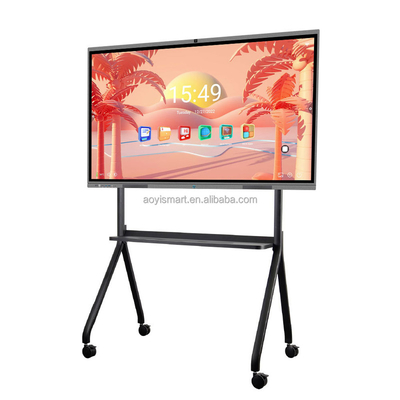

65 75 85 98 inch lcd interactive touch screen for conference led smart digital whiteboard 65 inch

2 pieces
MOQ
65 75 85 98 inch lcd interactive touch screen for conference led smart digital whiteboard 65 inch
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: AY-WB-065A
Folded: NO
Whiteboard Type: Interactive Whiteboard
Weight: 50
Color: White, black, silvery
Aspect Ratio: 16:9
Panel Type: LCD
Panel Size: 65 inches
Resolution: 3840*2160
Packing Dimension: 1610*190*1020MM
writing method: pen/finger touch
Product Dimension: 65 inch
Screen Size: 65 inch
Back light: D-LED
Luminance: 350cd/m²
Contrast Ratio: 5000:1
Response time: 6ms
Refresh: 60 Hz
Visual angle: 178°(H) / 178°(V)
Chromatic number: 1.07B(10bit)
Life time: 50,000 hrs
System version: Android 11.0
Build-in camera: 13MP
Informations de base
Model Number: AY-WB-065A
Conditions de paiement et expédition
Packaging Details: carton/cardboard/wooden
Supply Ability: 10000 Piece/Pieces per Month
Description de produit
New technology 55-110 inch 20/40 point touch Interactive Whiteboard for teaching and meeting
Products Description
(1) System:
* Equipped with Android 11 intelligent operating system and unique UI design;
* 4-core 64-bit high-performance CPU, A55x4 architecture, maximum support 1.8GHz clock;
* High-performance image processing engine: image motion compensation, color enhancement processing, etc.
(2) Appearance:
* Simple and fashionable design, with touch output, HD input and USB input design in front, convenient operation;
* High-precision infrared touch frame, touch accuracy up to ±2mm,touch height 3.0mm, support up to 40 points touch, high sensitivity;
* The front USB interface supports Android and PC sharing;
* With OPS computer interface, can be expanded into android and computer dual system;
(3) Whiteboard:
* Whiteboard handwriting ultra HD resolution, touch diameter minimum 2mm
* Support single point, multi-point writing, pen writing, picture insertion, add page, gesture erasing, zoom in and out, undo and restore, scan code sharing;
* Any interface of any channel can be annotated and saved;
* The white board selection function is rich, can move, zoom in and out, copy, change color, etc.
* Explosion-proof tempered glass, MOHS grade 7 hardness, safety assurance, optional AG anti-glare glass to make writing experience better;
(4) Intelligent operation
* One-click open and close android and PC dual system;
* Automatic recognition of external input signal source, easy and convenient screen switching;
* Left and right function navigation bar, convenient and quick operation of common functions;
(5) Conference and business functions:
* Built-in WPS, welcome interface, multi-screen interaction, remote conference and other efficient meeting software;
* Built-in 2.4GHz / 5 GHz dual WiFi network card, supporting WiFi Internet access and WiFi hotspots at the same time;
* Multi-screen interaction, support multi-channel on the same screen, mirror and reverse control operation, remote photography,video, music, document sharing, picture capture, wireless remote control and other functions;
* Customize boot screen, theme and background, support automatic classification of local media player;
* Pull the function bar on the left and right side, the gesture call mode and touch control switch can be switched freely, so that the conference machine can be turned into an advertising display machine or other commercial display products;
Screen
Model
AY-WB-065A
Size
65"
Back light
D-LED
Resolution
3840*2160
Luminance
350cd/m²
Contrast Ratio
5000:1
Response time
6ms
Refresh
60 Hz
Visual angle
178°(H) / 178°(V)
Chromatic number
1.07B(10bit)
Life time
50,000 hrs
System
Chipset
Quad-core ARM Cortex-A55
System version
Android 11.0
CPU + GPU
A55*4 + MaliG52
RAM
4GB DDR4
Internal storage
32GB
Language
English (multi-language optional)
OPS
Chipset
Intel core i5 / i7 (optional)
System
Windows 10 pro
RAM
4GB/8GB/16GB
SSD
128GB/256GB
Video
TV
Optional
Video decoding
MPEG-2/4, AVS, H.264, H.265,TS, Realmedia…
Power supply
Voltage
100 V ~ 240 V/AC, 50/60 Hz
Max power
≦260W
OPS power
DC 19V/5A
Standby power consumption
<0.5W
Power switch
*1
Audio
Power
10W/20W（8Ω）* 2
Camera
Build-in camera（4k, 3840*2160）
13MP*1
Microphone
Build-in Microphone array
Mic*8
Input/output interface
VGA IN
*1(Optional)
AV IN
*1
PC-AUDIO IN
*1
RJ45 Ethernet
*1
Earphone OUT 3.5mm
*1
HDMI IN
*3
USB
*4
USB-TYPE C
*1
TF-CARD
*1(Optional)
COAX /SPDIF
*1(Optional)
Touch in
*1
Touch out
*1
WIFI
2.4G*1, 5G*1
Bluetooth
*1
Power(AC)input
*1
Environmental factors
Operating temperature
-10℃ ~ 50℃
Storage temperature
-20℃ ~ 60℃
Operating humidity
20% ~ 80% (non-condensing)
Storage humidity
10% ~ 90% (non-condensing)
Structure appearance
Product size
Check the specification
Packaging size
Check the specification
Wall-mounted hole site
4-M8 screw hole 400mm*400mm
Canning material
Aluminum Front frame, PC back cover
Shell color
Black Front frame, Black back cover
Accessories
Touch pen
*1
Remote control
*1
Wifi antenna
*4
Manual
*1
Certificate of conformity/warranty card
*1
1.5m power cable
*1
Wall mounting bracket (including screws)
*1(set)
Smart Pen
*1(Optional)
Wireless projector
*1(Optional)
Details Images
Product packaging
Installation Instructions

* Wall-mounted

Wall-mounted installation is similar to the installation of television sets, only need to fix the support to the wall

* Mobile Stand

There are many options for mobile supports, which can be matched with different mobile supports for convenient use in different scenarios
Certifications
Company Profile
ShenZhen AOYI Technology Limited . was established in 2011 with a production base in Shenzhen, covering an area of 10,000 square meters. The company focuses on high-tech technology enterprises specializing in the production, sales, software development, and service of LCD and central control equipment. It is a high-tech enterprise integrating intelligence, specialization, and Internet + of domestic and foreign video products, and the overall solution of domestic and foreign leading products. Solution OEM & ODM provider.AOYI build up the Automation injection workshop,automation CNC digital control stamping workshop,SMT workshop,intelligent clear room and automation production line.The company has more than 300 employees, and about 40% of employees are with the high&intermediate grade technology management. The company has independent product R&D department, and has strong product development and innovation ability, the company have passed through a series of domestic and international quality management system certification and product certification, such as ISO 9001:2001 certification,3C and UL/CE/CB/SASO and so on.
Our Advantages

* Cooperate with world famous brands

We are a professional OEM ODM factory, mature technology and high quality to obtain the trust of customers

* Advanced equipment and instruments

We use advanced equipment and instruments for the whole series to better control the quality of products and reduce costs

* Strict quality control

We produce products strictly according to customer requirements, to ensure 100% qualified rate, we provide up to 36 months of free after-sales service, there are technical support centers around the world
FAQ
1)Are you a factory or trading company ? What is the MOQ?
A:Yes, we are factory direct sales and have some items in stock , youcan order 1pcs for test.

2) What is the delivery time? Where do you ship ?
A:Generally speaking , the goods can be delivered within 5-7 days for small orders, and the production time about 15 days for more than 10pcs. In addition, our factory is located in Wangniudun, Dongguan. If you have forwarder in Shenzhen or Guangzhou, we can help shipment to your fowarder .

3) Could you provide OEM&ODM service?
A:of course , including software, packaging, product logo, etc., consult customer service for moredetails.

4) What is the warranty period of the product?
A:Normally it is 1 year, we have a professional after-sales service team,specific details can consult customer service.

5)How do you guarantee the quality of your products?
A:Our products comply with ISO9001 quality system and CE/FCC/ROHS standards. All our products pass strict QC inspection in the production process. In particular, export products need to complete 72-hour aging test to ensure no problems before shipment.

6)How do you arrange transportation?
A:If small sample orders suggest express delivery (7-10 days) or air freight (10-15 days), if bulk production advise by sea more favorable , please consult customer service for more details !
